12V to 48V alarm reinforced nylon reverse alarm beep sound white noise squawker reverse alarm
General specifications:
| Output level | 112dB ± 4dB at 1.2M |
| Voltage | 12-48VDC |
| Current drain | less than 0.6A |
| temperature range | -40 to 85 degree C |
| Frequency | 1240Hz ± 10% |
| Duty cycle | 0.85 pulse per second 50% ON 50% OFF |
| weight | 690g ± 10% |
| Dimensions | 127*95*77mm |
Applications:
For equipments and vehicles like,cars, trucks, construction machinery, with 12V and 48VDC system, made for heavy duty applications in medium or high noise area.
Main features:
High output, 112dB beep sound or 107dB white noise output at 1.2m, high enough to make it heared, warning people nearby and be safe
Reinforced nylong housing Glass-filled nylon, Designed to meet all hash conditions, provide splendid durability
IP68 PCB and speaker fully sealed with epoxy, well protected fagainst dust, moisture and vibration
Polarity protection It will not be damaged even you connect the polarity wrong
Easy to install Universal mount size, compatible to many OEM vehicles and equipments, also many connectors optional
Long warranty 24 months or longer
Many sounds optional beep sound, white noise sound, dual or multi frequency sound optional
RoHS and CE
Similar products:
with same housing
| P/N | Voltage | Output | Remark |
| YS-B61 | 12-48V | 107dB | |
| YS-B62 | 12-48V | 112dB | |
Alarms of different housings
wire connection version ot studs version available for some housings
Connctors optional for wire connection versions
beep sound, white noise sound, vocal messages available for some models
Intelligent alarms with beep sound, white noise sound available.
Intelligent alarms with night mode, silent mode avaible.
Quick details for all series alarms
| Series | Size | Sound | Remark |
| B00 | 127*70*73.5mm | beep sound | intelligent models available |
| B10 | dia 60*46.3mm | beep sound | |
| B20 | 103.5*40.5*71mm | beep, white noise, bespoken message | intelligent models available |
| B30 | 103*44.5*68mm | beep, white noise, bespoken message | intelligent models available |
| B40 | 129*69*74mm | beep sound, bespoken message | manual adjustable available |
| B50 | 102*44.5*69.5mm | beep, white noise, bespoken message | intelligent models available |
| B60 | 127*95*77mm | beep, white noise, bespoken message | intelligent models available |
| B70 | 127.5*79*82mm | beep, white noise, bespoken message | models with night mode available |
| B80 S | 105*71.8*70mm | beep, white noise, bespoken message | models with night mode available |
| B80 L | 130*76*88mm | beep, white noise, bespoken message | models with night mode available |
| BJ | | beep, white noise, bespoken message | |
| B | 58*30*59.5mm | beep, white noise, bespoken message | models with night mode available |
More information about the alarm:

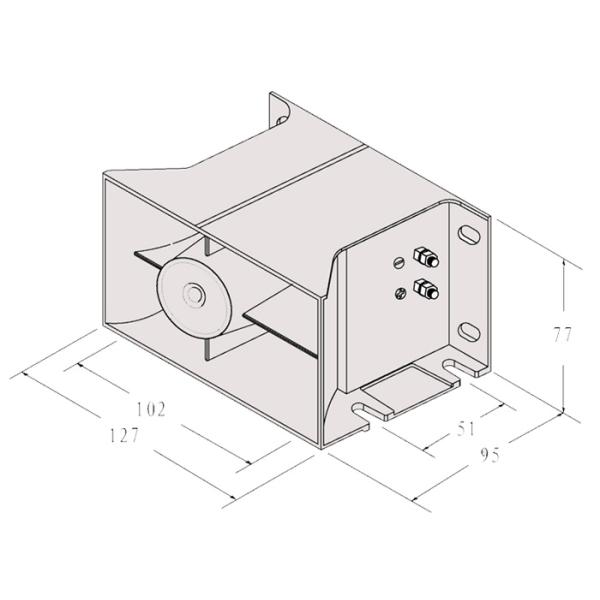

Alarm drawing, sizes in mm
alarm production line, with operation instruction for all positions
Alarm in production test, to have a better quality
Alarm Lab tests, including general specs tests, enviromental tests, reliabity tests, to make sure alarms well designed, will work well as we design it.
feel free to let me know if you want to know more about our products and factory.
